How to Maximize Plot Capacity for Self-Storage? Yard Layout Design

The self-storage business relies on one simple metric: the NRA ratio, which in this case is the ratio of Net Rentable Area to the total plot area. Every square meter that does not generate revenue is a cost loss. On the other hand, overbuilding the container yard can paralyze traffic, make access difficult for customers, and create other hazards, such as fire risks.

How, then, do you find a compromise and squeeze maximum profit out of the yard? Here are the key principles for designing an optimal self-storage yard layout.

Rigid Legal and Site Constraints

Optimization does not start with drawing the module layout, but with analyzing constraints that exist across several aspects and cannot be shifted.

Check the Local Spatial Development Plan. Pay attention to the required biologically active area, which often restricts development by 10–30%, maximum building height, and non-negotiable building lines along public roads.

Fire safety regulations and emergency service access requirements dictate minimum lane widths and turning radii.

Pay attention to the shape of the self-storage plot. A square or rectangular plot is the most efficient. L-shaped or irregular plots require dedicated, custom-built solutions in the corners.

How to Arrange Modules? Examples of Spatial Layouts

The arrangement of shipping containers determines the amount of available space. They can be positioned in several ways:

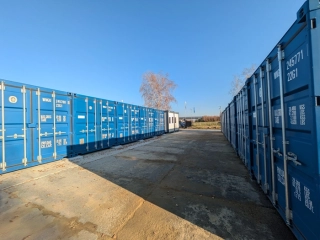

"Back-to-Back" Layout
This is the most space-efficient layout. Containers are joined by their rear walls into long double rows.
- Advantage: Reduces the number of required access aisles by half.
- Application: Center of the yard.
Perimeter Layout
Modules are placed along the plot fence, with their backs to the property boundary.
- Advantage: Maximum utilization of the plot edges—savings on fencing (the back of the modules forms a physical barrier, though it is worth checking legal requirements regarding distance from the boundary).
- Application: Edges and perimeter of the plot.
Mixed Layout
Containers are positioned both in the center using the back-to-back option and along the edges perimetrically.
- Advantages: Maximum space utilization while maintaining access aisles to all rows.
- Application: Large yard areas where a single layout is not enough to occupy all available space.
Two-Level Self-Storage
When the size of your plot is limited, creating an upper floor for self-storage is often the only direction for growth.
- Advantages: Simply adding a suitable staircase allows you to gain an additional floor, thereby doubling the rented area.
- Application: Small yards where it is impossible to place all containers on the ground floor. It is also worth considering planning smaller units on the upper floor so that customers can more easily stock their spaces, which will serve them as additional storage lockers.

Aisles and Traffic Corridors

The width of access roads is where it is easiest to "lose" valuable square meters. Design one-way traffic wherever possible, as this allows you to drastically narrow the aisles.

Traffic Type	Required Aisle Width	Notes
Two-way traffic	7.0 m – 8.0 m	Allows vehicles to pass each other and load/unload on both sides. Takes up a lot of space.
One-way traffic	4.5 m – 5.0 m	Sufficient for a delivery vehicle to pass and unload. Increases NRA by up to 15–20%.
Turning loop	Radius > 10 m	Avoid dead ends! If you must create them, plan turning areas.

Other Yard Elements

Irregularly shaped nooks and crannies on the site that cannot accommodate a storage container or lack proper access should be allocated for other equipment, such as an electrical distribution panel or your own customer service office.

An adequate distance from the entrance gate should also be maintained so that a car can comfortably pass another vehicle at the gate without creating traffic jams. For service security and quality, it is also worth equipping the yard with CCTV monitoring and drainage systems.

Maximizing plot capacity for self-storage is a deliberate strategy in which precise planning directly translates into the long-term profitability of the entire venture. Skillfully balancing a high NRA ratio with maintaining traffic routes for safety reasons allows you to turn every unassuming square meter of land into capital that works for you continuously. Ultimately, it is precisely a layout refined to the smallest detail that distinguishes a simple storage site from a modern self-storage facility that attracts customers and generates maximum profits for years to come.
